Automatic Vertical Glass Edge Grinding Machine with CE for Insulating glass production
Description of Vertical Glass Edge Grinding Machine
Vertical Glass Edge Granding Machine LJCM2545 is used to remove low-e film from edges of the glass.Glass Edge Sanding Machine can be connected to the insulating glass production line and is necessary equipment in insulated glass processing
Main feature of Glass Edge Grinding Machine
1.PLC control system,touch screen interface
2.Two-way glass access
3.Edge deletion is adjustable
4.Automatically distinguish low-e surface
5.Intelligent control system, can recognize batch processing
6.The glass edge deleting machine adopts imported servo control system, positioning accurately with smooth operation.
7.Automatically measure size
8.High quality grinding wheels are durable, can produce neat and beautiful grinding crack. The distance can be set among 10 ~ 150 mm arbitrarily.
Technical parameter of Low-e Glass Edge Grinding Machine
| Max.glass processing size | 2500*4500mm |
| Min.glass processing size | 350*500mm |
| Glass thickness | 3-15mm |
| Edge deleting width | 10-50mm |
| Glass conveyor speed: | 30m/min |
| Edge deleting speed | 0-15m/min |
| Abrasive wheel width | 10/12/15mm |
| Air supply | Flow 0.2m3/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 3.35KW |
| Dimension | 8000*2500*3400mm |

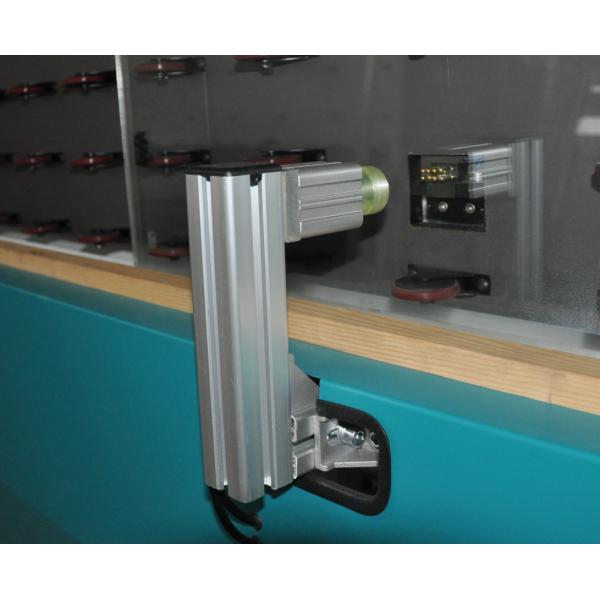

Detail picture of Low-e Glass Edge Deleting Machine
Related products

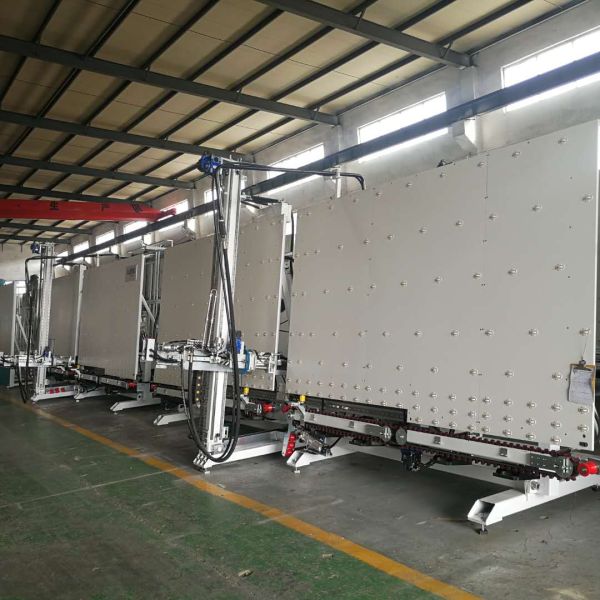

Vertical Insulating Glass Sealing Robot LJTJ2540
Main Features:
• Min & Max glass sizes can be optional
• Adopt 8 servo motors
• Adopt Japan servo control system with stable performance
• Automatically measure glass size, glue depth and glue speed with linear adjustment
• Adopt timing belt to keep smooth convey with accurate position
• Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
• The glass corners are full without air bubbles, smooth surface, no need to
• Full automatic and high-efficiency machine
• Automatically repair glass corners with beautiful surface
• Smooth convey without scratch and pollution
• Single-function parts are equipped with manual functions, easy adjustment
• Can coating more than 8 kinds of shaped glass, include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc (Optional)
• Seal stepped glass fully at once (Optional)
• Can seal stepped IG with four sides (Optional)
• Adopts double pumps device to use two kinds of different sealants, such as silicone, polysulfide and silicone structural sealant (optional)
Our Factory
FAQ
Q:Is LIJIANG GLASS a factory or a trading company?
A: A factory in Jinan city.
Q: What is the system of LIJIANG’s after sale service?
A: LIJIANG has its own special system for the service, we make a “tree of knowledge”for guiding customer to find the usual problem and the answer when customers meet.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
Ater sale
Related product of LIJIANG GLASS
Insulating Glass Butyl Coating Machine For Spacer Frame
LJTB 01 Butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl.
Advantage of automatic butyl rubber machine LJTB01
1.PLC control system, touch screen interface
2.Automatically adjust the amount of glue according to the speed change
3.Automatic identifying the width of aluminum bar, the glue nuzzle can be automatic adjust
4.The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full 5.Fast preheat, improve work efficiency
6.with preheating function
7.With exhaust inflatable function, improve the quality of sealing and save time for plastic
8.Quickly coating speed,can up to 47m/min
9.Saving the amount of glue
Feature of Automatic butyl coating machine
1.The Butyl Extruder adopt PLC control system ,touch screen interface
2.Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.
3.Glue cylinder of Butyl coating equipment adopt the upright structure, easy to change butyl.
4.Butyl extruder machine adopt Siemens brand,stable performance.
5.Butyl extruder machine is suitable for square, rectangular, shaped, arc and kinds of aluminum frames.
6.The Butyl coating machine can be Quickly speed of warming,Up to 47m / min,improve work effect.
7.Butyl Extruder machine can automatically adjust the amount of glue according to different speeds.
8.Alarm system
Automatically alarm system, reminding adding butyl
9.Guiding Wheel
Using guiding wheel to help arc frames coating.
10.Automatic filter function
Automatically filter debris, keep spreading evently.
Technical Data of butyl extruder machine
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 20mm |
| Aluminum spacer width | 6A-27A |
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Air pressure | >0.6MPa |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Dimension | 2800*700*900mm |
| Total power | 380V, 5KW, 50HZ |
Detail of Automatic butyl extruder machine
Related products
Desiccant Filling Machine LJGZ 2020A
Main feature
• Germany Siemens PLC control system
• Touching screen interface, simple and visible
• The height can be adjusted according to the size of spacer frame
• Automatically loading and replenish desiccant
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Using big plastic barrel, save feeding time and improve efficiency
• Protection device for machine head
• Adopt vacuum pump loading device ,increase the loading speed
• Arc frame (optional)
• Fill large particle molecular sieve (Optional)
Technical data
| Max frame size | 2000mm*2000nn (2500mm*2500mm) |
| Min frame size | 300mm*250mm |
| Aluminum specifications | 6A - 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.5KW |
| Molecular sieve diameter needed | 0.5-0.8mm |
| Dimension | 1650mm*1100mm*3600mm |
