Aluminum Frame Transfer Machine For Insulated Glass Equipment

Name: Aluminum Frame Transfer Machine For Insulated Glass Equipment
Brand: Lijiang
Price: 2000 USD

Wholesale Aluminum Frame Transfer Machine For Insulated Glass Equipment from china suppliers

Brand Name : Lijiang

Model Number : LJSKJ02

Certification : CE

Place of Origin : Jinan

MOQ : 1 SET

Price : 2000 USD/SET

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10 SETS/MONTH

Delivery Time : 10 days

Packaging Details : plastic film

Name : Aluminum frame transfer machine

Power(w) : 380v 50hz

Warranty : 1Year

Color : customer-made

Weight : 150 kg

Max. glass size : 2520*3012*3000 mm

Application : Aluminum spacer bar transfer

Total power : 0.18 kw

Contact Now

Product Description :

Aluminum Frame Transfer Machine

1. Spacer frame transport

2. Easy operating

3. Simple and flexible

4. Connect with insulating glass line

5. Connect with automatic butyl extruder machine

Technical data:

Power supply	380V 50Hz
Total power	0.18kw
Dimension	252030123000mm
Weight	150kg

Relative Machines:

1.Aluminum Spacer Bending Equipment

2.Automatic Desiccant Filler

3.Insulating Glass Sealing Robot

4.Glass Cutting Table

5.Custom Glass Edging Machine

Details Display

Aluminum Frame Transfer Machine For Insulated Glass Equipment

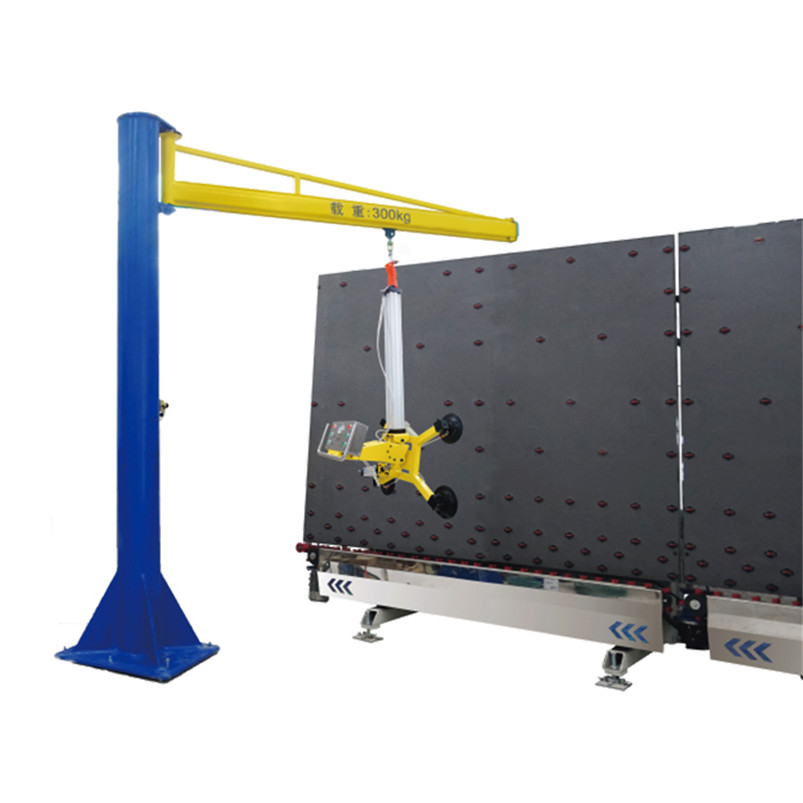

Cantilever Crane LJXJ300

Pneumatic glass handing manipulator is operated by using compressed air. The device does not use electricity and is safe and reliable, easy to operate. It is an essential glass handling tool for a modern glass processing industry. The air flowing through the vacuum generator causes Vacuum Pressure to suck the glass. A cylinder stroke is acted by receiving the command signal from the compressed air in an inlet pipe. The device is commonly used for glass handling work in glass factory processing lines, such as grinding, cleaning, tempered, laminated, insulated, etc.

Glass Cantilever Crane with lifting sucker
1. This vacuum glass lifter is for handling insulating glass sheet.
 2. This glass lifter is able to lift the glass sheet with 800kg
 3. It is equip with 5 suckers. But the sucker can be add according to need of the client.
 4. The equipment is Stable, Easy to use and safe.
 5. The vacuum lifter is equipped with a warning light in case of a power failure or vacuum leakage, an optical and an acoustic
 signal goes off immediately to warn the operator to do emergency operation.
Useing For

 - Insulating Glass Production line,
 - Installing Glass Curtain Wall System,
 - Loading and Unloading glass sheet on glass cutting table,
 - Instaling car windscreen.

glass vacuum lifter,hoist lifting equipment,glazing lifting equipment,vacuum lifts hoists,mobile vacuum lifter,suction lifting devices,glass curtain wall system,cantilever crane,vacuum lifting equipment,glass vacuum lifting equipment,glass lifting devices,glass vacuum suction cups lifters,glass lifting equipment,suction lifting equipment

Benefits & Advantages

1 Equipment composition: Equipment Main Frame/Equipment Rotary System/Equipment Adsorption System/Mechanical Reversal System
2 Mechanical configuration Flip cylinder: Airtac(Taiwan) Vacuum Generator: Pisco(Japan) Vacuum sucker: Imported green butadiene rubber
3 Pneumatic Original Check valve: SMC(Japan) Up and down cylinder: Airtac(Taiwan) Pneumatic components: Airtac(Taiwan)

Main Technical Parameter


 			Item.
 			Spec.

 			Max Glass weight
 			360KG


 			Rotation angle
 			90°
 			Left and Right

 			Suction cups
 			4 Pieces


 			Cups Materials
 			Silicone


 			Sliding method
 			Manual


 			Column height
 			4 meters
 			Gas storage function

 			Arm length
 			4 meters


 			Air control parts
 			Airtac


Advantages & Features

Aluminum Frame Transfer Machine For Insulated Glass Equipment
