Semi Auto Insulating Glass Line / Rotated Table Spacer Cutting Machine And Spacer Tansfer Machine

Jinan Lijiang Automation Equipment Co., Ltd.
Contact Now

Semi Auto Insulating Glass Line / Rotated Table Spacer Cutting Machine And Spacer Tansfer Machine

Brand Name : Lijiang

Model Number : LJZT03

Certification : CE

Place of Origin : China

MOQ : Negotiable

Price : Negotiable,

Payment Terms : L/C, T/T

Supply Ability : 20set/month

Delivery Time : 10days

Packaging Details : wooden case or container

Name : Aluminum spacer transfer machine

Advantage : easy operate

Function : aluminum spacer cutting and transfer

Type : Spacer Tansfer Machine

Contact Now

LIJIANG GLASS-FOR WORLD GLASS MANUFACTURE SERVICE



Semi Auto Insulating Glass Line / Rotated Table Spacer Cutting Machine And Spacer Tansfer Machine

LJZT03 Gold partners for sealant spreading—Rotated table

Semi Auto Insulating Glass Line / Rotated Table Spacer Cutting Machine And Spacer Tansfer Machine

LJZT03 Gold partners for sealant spreading—Rotated table, good work with Sealant extuder and Hotmelt extuder, easy operating used for fixing and rotating glass when manual coating the outside of insulating glass processing. The glass processing size can be request as customer required.

Main technical parameter


Power supply 380V 50Hz
Total power 0.37kw
Operating dimension 1500*1500mm
Dimension 600*550*985mm

1.Easy operating, simple and flexible

2.It is used for fixing and rotating glass when manual coating the outside of IG glass

3.The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass

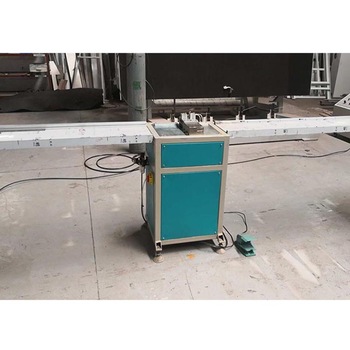

LJQJ02 Aluminum spacing trip cutting machine

Main technical parameter

Power supply 380V 50Hz
Total power 0.55kw
Dimension 5000*1050*415mm

Semi Auto Insulating Glass Line / Rotated Table Spacer Cutting Machine And Spacer Tansfer Machine

Semi Auto Insulating Glass Line / Rotated Table Spacer Cutting Machine And Spacer Tansfer Machine



LJSJ02 Semi-auto aluminum frame transfer machine

APPLICATION

After an aluminum frame is coated with butyl, hang on the hook of this machine that the machine will move ahead the spacer.

Main technical parameter

Power supply 380V 50Hz
Total power 0.18kw
Dimension 2520*3012*3000mm

Semi Auto Insulating Glass Line / Rotated Table Spacer Cutting Machine And Spacer Tansfer Machine



Semi Auto Insulating Glass Line / Rotated Table Spacer Cutting Machine And Spacer Tansfer Machine

Semi Auto Insulating Glass Line / Rotated Table Spacer Cutting Machine And Spacer Tansfer Machine

Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring

city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.

The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.

With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
