High Speed Butyl Extruder Machine For Insulating Glass Processing Equipment

Name: High Speed Butyl Extruder Machine For Insulating Glass Processing Equipment
Brand: Lijiang
Price: 1 USD

Wholesale High Speed Butyl Extruder Machine For Insulating Glass Processing Equipment from china suppliers

Brand Name : Lijiang

Model Number : LJTB01

Certification : CE

Place of Origin : China

MOQ : 1set

Price : Negotiable,

Payment Terms : T/T, L/C

Supply Ability : 10set/month

Delivery Time : 10days

Packaging Details : wooden case or container

Name : High Speed Butyl Extruder Machine For Insulating Glass Processing Equipment

working speeding : 5-47m

Aluminum Spaer width : 5-47m/min

Contact Now

High Speed Butyl Extruder Machine For Insulating Glass Processing Equipment

LIJIANG GLASS-FOR WORLD PROCESSING GLASS MANUFACTURE SERVICE

High Speed Butyl Extruder Machine For Insulating Glass Processing Equipment

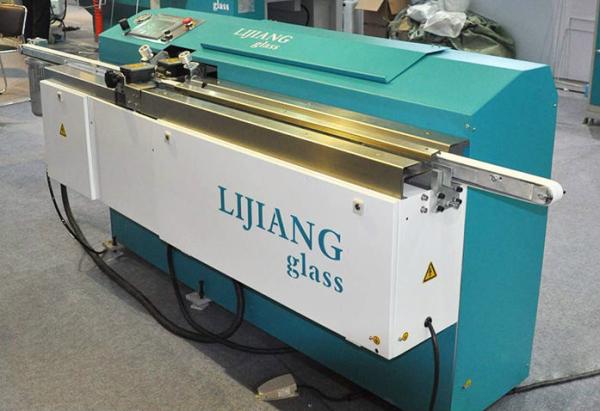

Butyl Extruder Machine LJTB 01

►►►►►

Butyl Extruder Machine LJTB 01 Automatic butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The butyl extruder uses large electrical control panel which makes the operation more easier than before. The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now.

² Technical Data

Squeeze pressure	10-18MPa
Temperature	110~140℃
Aluminum spacer width	4-30mm
Speed	0-47m/min
Diameter of butyl cylinder	200mm
Air supply	0.4m³/min
Air pressure	≥0.6MPa
Total power	380V, 5KW, 50HZ
Dimension	2600×680×1100mm(L×W×H)
Weight	650kg

High Speed Butyl Extruder Machine For Insulating Glass Processing Equipment

• PLC control system, touch screen interface

• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust

• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full

• Fast preheat, improve work efficiency

• with preheating function

• With exhaust inflatable function, improve the quality of sealing and save time for plastic

• Quickly coating speed,can up to 47m/min

• Saving the amount of butyl
