Air Gas Filling 7 Sections 45m/Min Glass Processing Line

Automatically vertical Insulating Glass Processing Line With Air Gas Filling

Overview of Double glazing glass processing line

Glass processing line has 7 sections:

01 transfer section;

02 washing section;

03 discharge section;

04 inspection and installation section;

05 transfer section;

06 pressing and filling gas section;

07 discharge section.

Main Features

• PLC control system, touch screen interface

• Adopt SIEMENS control system, keep stable performance

• Using servo to control system, modular function, superposition function

• Automatically adjust the depth of glue with digital display

• Min & Max glass sizes can be optional

• Applicable to produce stepped IG, triple IG and shaped IG

• Two pieces of IGU can be made and filled with argon gas in one time (Optional)

Optional functions:

• Shaped glass

• Step glass with optional edges

• Filling argon gas automatically

• Air-floating technology to transfer glass

Technical data of Hollow glass production line

Detail of insulating glass processing line

• 01 transfer section

automatic detection of offline Low-e film,Coating detection mechanism

• 02 washing section

• Pre-washing (Optional)

• Using 3 pairs of soft brushes with 0.1mm soft hair, can wash low-e glass

• The air knife can automatically adjust the width of the air knife according to the thickness

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife

• European silencer system

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• Stainless steel material

• 03 discharge section

• Function is Storage glass

• 04 inspection and installation section

It is easy to inspect and wipe the glassThe new structure of this section is changed to an inline beam lifting structure (double beam).

• 05 transfer section

•It can be used according to actual needs when working. Automatic measurement of glass thickness.

• 06 pressing and filling gas section

• Suitable for mass production in a factory. Ultra-fast speed

• Two pieces of IGU could be pressed and filled gas in once time, each IGU could fill argon gas over 90%

• High-speed IG processing line, we have obtained patent rights in China in 2019

• Solving the problem of waiting for working on the sealing robot. Installing two spacer frames for two IGU by one workman

• Automatically measuring glass size and labeling (labeling can be allowed before pressing and after pressing) with ERP system (Optional)

• Can be better prevented the pressing part to be out of shape by pressing two pieces of IGU in once time. Can reach 27s for each 1m*1m double glass, improving work efficiency highly

• From transfer part to pressing part, each part is divided

To prevent the glass from being contaminated by wheels and leaving traces to improve the IG production’s high quality.

45m/Min glass processing equipment

7 Sections glass making machine

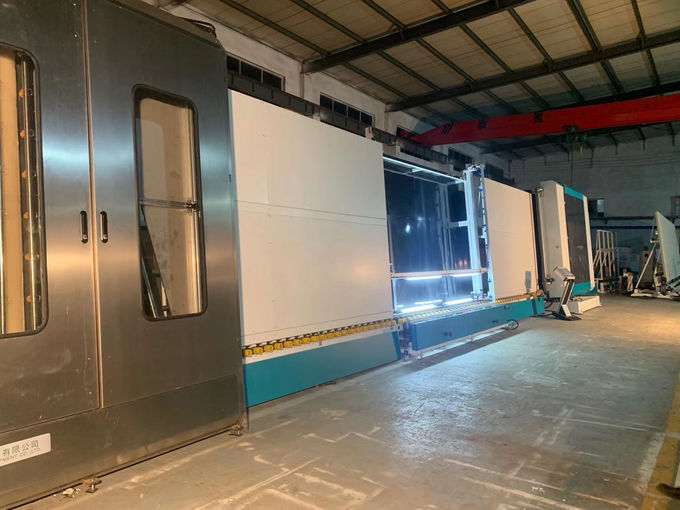

Air Gas Filling 7 Sections 45m/Min Glass Processing Line Images
