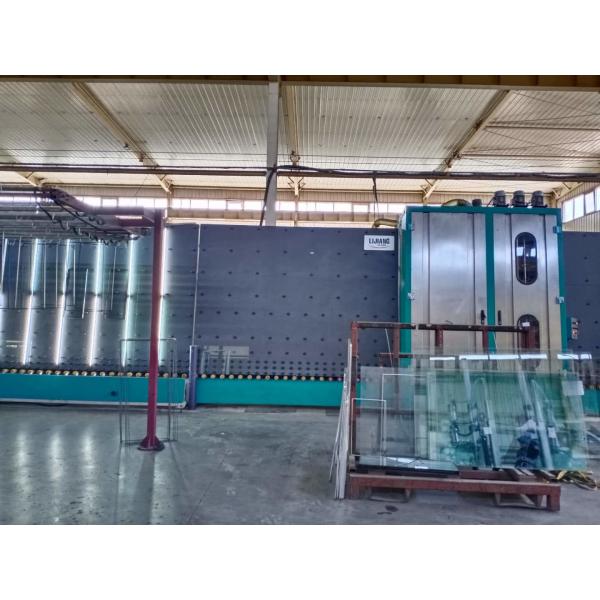

Water heating Filling Gas Insulating Glass Production Line

Jinan Lijiang Automation Equipment Co., Ltd.
Contact Now

Water heating Filling Gas Insulating Glass Production Line

Brand Name : LIJIANG

Model Number : LJBZ2535

Certification : CE

Place of Origin : China

MOQ : 1set

Price : $60000-65000/set

Supply Ability : 6sets/month

Delivery Time : 30days

Packaging Details : wooden

name : insulating glass line

max glass size : 2500mm*3500mm

min glass size : 450mm*280mm

glass thickness : 3-15mm

ig thickness : 50mm

washing speed : 2-10m/min

washing brushes : 6pairs

air pressure : 0.8mpa

total power : 380v 40kw

weight : 6500kg

Contact Now

LJBZ2535 filling gas ,Abundant quality assurance of materials for aerated glass production line​

  • The washing machine uses six soft (Low-e) brushes with the 01mm diameter only.
  • It has 6 brushes which are all soft brush, can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass.

  • Using Europe's advanced anti-noise system to create a good working environment for employees
  • The noise can be controlled below 90 decibels by using nylon gear and sponges.

  • Water heating system and water filter system
  • As different countries have different water quality, in order to ensure that the glass is washes clearly enough, adopting air heating system, to use soft water to wash glass. What’s more, using water filter system to make water recycling, save water and keep the water clear.

  • Water heating Filling Gas Insulating Glass Production Line Water heating Filling Gas Insulating Glass Production Line

  • The special structure inside the washing machine can automatically recognize glass thickness. Allowing different thicknesses of glass to be transferred quickly, increasing production speed. According to the test, it takes only 22s to produce a 1m*m insulating glass.

    1). There is a universal joint device, when the glass thickness was changed, the wind knife will move forward and backward to adjust the distance so that the relative distance between the wind knife and the glass is constant, so as to avoid damage to the glass due to the changes of the glass thickness.

  • There are chain gears on both sides of the bottom of the glass to actively transfer the glass which can keep a fast speed, not only the large size, small size glass can also be passed quickly.

  • Water heating Filling Gas Insulating Glass Production Line

  • Water heating Filling Gas Insulating Glass Production Line

  • There is the Low-e glass sensor in the washing machine
  • Shaped, the first piece of glass automatically stop at the end of the aluminum frame assembly period, artificial put aluminum frame, the second piece of glass at the same time automatic stop at the end of the cleaning discharging period, artificial glass moved close to aluminum frame assembly, after the piece, stepping on foot switch, or better ones for pressing the glass into the close to the specified size.

    NAME ORIGIN BRAND
    Transfer motor Germany SIEMENS
    Brush motor Germany SIEMENS
    Servo motor Germany SIEMENS
    PLC Germany SIEMENS
    Low voltage electrical appliance Germany SIEMENS
    Frequency converter Germany SIEMENS
    Micro Switch Taiwan TEND
    Button and indicator light France SCHNEIDER
    touch screen Taiwan WEINVIEW
    Intermediate relay Japan OMRON
    Water pump China LINGXIAO
    Guide Taiwan HIWIN
    Pneumatic Components Taiwan AIRTAC
    electric gauge China MIRAN
    Photoelectric switch Korea AUTONICS
    JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD
    Water heating Filling Gas Insulating Glass Production LineWater heating Filling Gas Insulating Glass Production Line

    If the size of the production, first set the distance between X and Y on the touch screen, manual test whether the distance is correct. Clean first: small pieces, directly into the flat pressing section, while large pieces of glass in the aluminum frame assembly section put the aluminum frame, after the completion of the foot switch, glass into the flat pressing section for the flat pressing.

    Take the glass:Click "Pick glass" in the automatic state, and the board will close, put down the glass, open the board, and send the glass out of the board. (in the automatic production, the first piece of glass has been sucked on the movable plate, and there is no subsequent glass, so the first piece of glass needs to be taken out, using this function)
