Air Float 10m/Min Insulating Glass Production Line

Air float insulating glass production line, the latest technology, to ensure the perfect operation of the new processing

• Requirements for relative humidity: This kind of hollow glass slightly lower to the requirement of relative humidity and normal conditions can, but should pay attention to is, desiccant should choose normal manufacturer of qualified products, to ensure the effective use of the drying agent, desiccant after opening for best results, use in 14 hours, because the case of sulfur rubber permeability is relatively large, poor sealing, therefore should adopt double seal with butyl rubber as the first line of the seal, have the effect of Yin gas insulation, with polysulfide sealant as a main function of the second seal is binding effect, followed by trapping effect, practice has proved that yield of sealing life of hollow glass is only 5 years or so, And double sealing life of hollow glass can be up to 20 years or even 40 years as a result, the development of double sealed insulating glass is the trend of The Times 4, press glass pieces of rubber strip type insulating glass piece of note or piece of glass edge alignment, pressure were behind reserve a small mouth, let dry gas overflow from the mouth, then seal after pressing. At this point, the rubber strip insulating glass is added. A distance of 5-7mm should be set between the outer part of the aluminum frame and the glass edge of the aluminum bar insulating glass after the aluminum bar is closed. It should be used for the second sealant. The polythioglue should be evenly spread along one side to prevent bubbles

•

• The cleaning of glass must be done by machine, because manual cleaning cannot guarantee the cleaning quality. To ensure the bonding between sealant and broken glass, it is better to use deionized water. In addition, to ensure water circulation and save water resources, the water can be filtered to ensure long-term use. After cleaning the glass to pass the light inspection, check the surface of the glass whether there is water, water stains and other stains, if there is water and other drift with machine speed such as hot product degree. The air lamp, the brush, in addition to the adjustment until the effect is good enough to wash after printing glass should be assembled into hollow glass within 1 hour, in addition to ensure that the glass and glass do not scratch between the best semi-finished glass storage car, the glass separated

•

  NAME	ORIGIN	BRAND
  Transfer motor	Germany	SIEMENS
  Brush motor	Germany	SIEMENS
  Servo motor	Germany	SIEMENS
  PLC	Germany	SIEMENS
  Low voltage electrical appliance	Germany	SIEMENS
  Frequency converter	Germany	SIEMENS
  Micro Switch	Taiwan	TEND
  Button and indicator light	France	SCHNEIDER
  touch screen	Taiwan	WEINVIEW
  Intermediate relay	Japan	OMRON
  Water pump	China	LINGXIAO
  Guide	Taiwan	HIWIN
  Pneumatic Components	Taiwan	AIRTAC
  electric gauge	China	MIRAN
  Photoelectric switch	Korea	AUTONICS
  JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD

10m/Min glass production machinery

Air Float double glass machine

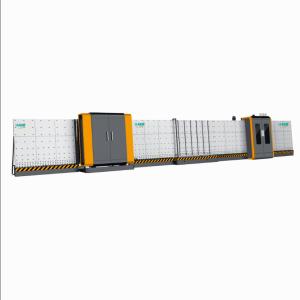

Air Float 10m/Min Insulating Glass Production Line Images
