Automatic Desiccant Filling Machine For Filling Molecular Sieve Drying Materials
The desiccant filling machine is an auxiliary machine for making insulating glass units, the following is the main features :
• Adopt Siemens PLC control system
• Molecular sieve can be 0.5 – 0.9mm or 1.0 – 1.5mm sizes
• Touch screen interface, simple and visible
• The machine height can be adjusted according to the size of spacer frame
• Automatically loading and replenish molecular sieve
• Double tubes for unloading to increase filling speed
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Using big plastic barrel, save feeding time and improve efficiency (Optional)
• Protection device for machine head (Optional)
• Filling arc frame (Optional)
| Max. frame size | 2000mm*2000mm (2500mm*2500mm) |
| Min. frame size | 300mm*250mm |
| Aluminum specifications | 6A- 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.9 mm or 1.0 – 1.5mm |
| Dimension | 1100mm*1100mm*3600mm |
The Desiccat Filling Machine can use 0.5 - 0.9mm or 1.0 - 1.5mm molecular sieve material, it is according to customer's needs. The molecular sieve can be in small bags, also can be big barrel. In our desiccant filling machine, we have two types, one is with common barrel, another one is with big barrel to install a big barrel for desiccant material.
JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD
Address: Block B 1307, Green Square, Huaiyin District, Jinan, China
Tell : 0086 0531-85960498 Fax : 0086 0531-87562846
Salesperson: Hermione (+86 18353163989 / +86 13001733235)
Email: sales01@lijiang-glass.com
Website : www.lijiang-glass.com / www.insulatingglassproductionline.com
RFQ :
Q:Is LIJIANG GLASS a factory or a trading company?
A: A factory in Jinan city.
Q: What is the system of LIJIANG’s after sale service?
A: LIJIANG has its own special system for the service, we make a “tree of knowledge”for guiding customer to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
Product Tags:
|
|

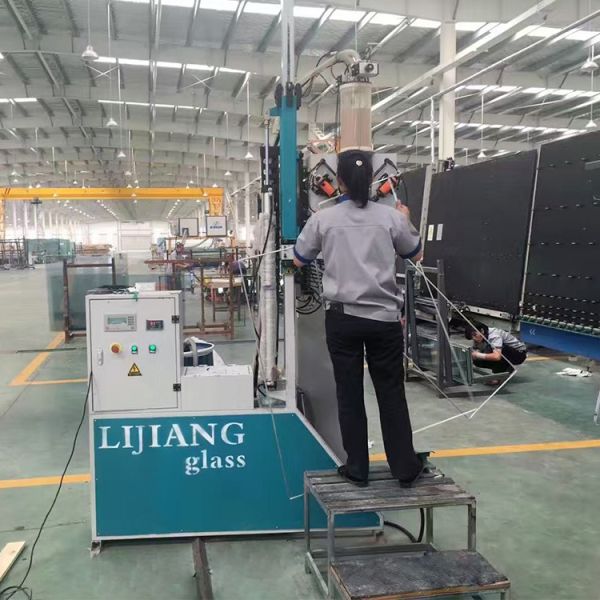

Drying Materials Blue Desiccant Filling Machine Images
|
